Remarks :

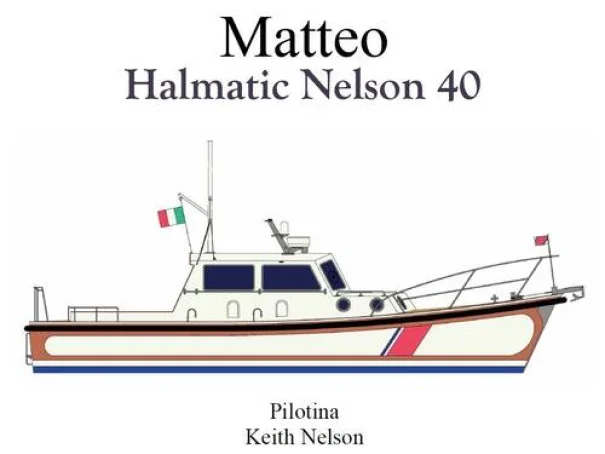

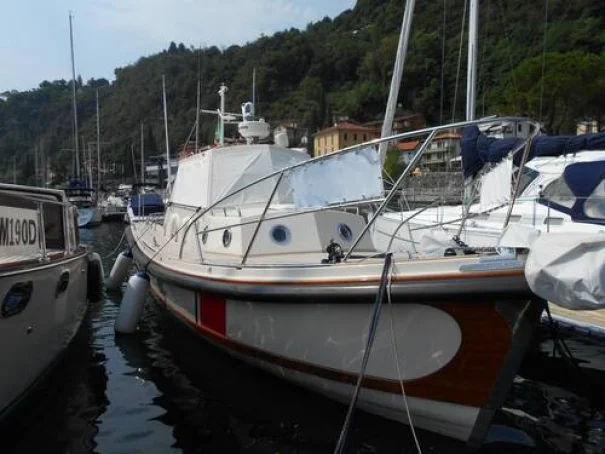

Halmatic Nelson 40 – Historic Patrol Boat, Fully Rebuilt to Exceptional Standards
Matteo is a rare and remarkable former patrol boat originally commissioned by the La Maddalena Port Authority.
Built in 1975 in Hampshire, England, the vessel features an exceptionally robust HALMATIC hull constructed in fiberglass-reinforced plastic, renowned for its strength and seaworthiness. Designed for extended operations.
The Nelson Pilot 40 is one of the most iconic pilot boats ever designed, combining proven commercial pedigree with exceptional seakeeping and cruising comfort. Designed by Arthur Mursell and built in the UK by Halmatic, the Pilot 40 is based on the legendary Nelson semi-displacement hull—widely regarded as one of the most successful offshore motor yacht designs of the post-war era.
Comprehensive Refit (2011–2014)
A complete renovation was undertaken between 2011 and 2014 by the renowned Cantiere Colombo Leopoldo of Griante Cadenabbia (Lake Como), under the supervision of Geometrie Marine, led by engineer Aldo Gatti.
This was not a cosmetic refit, but a total reconstruction of the vessel, from hull to propulsion, from systems to instrumentation.
Engines & Mechanical Systems
- Twin Aifo Fiat diesel engines, model 100 – 8361 SRM 32s, rated at 235 hp
- Fully overhauled by Bimotor (Ciriè, Turin)
- Engines repainted, with all electrical connections replaced
The engine room was entirely upgraded with:
- New sound-insulating panels
- New bilge pumps
- Completely renewed diesel and freshwater piping
- New filters throughout

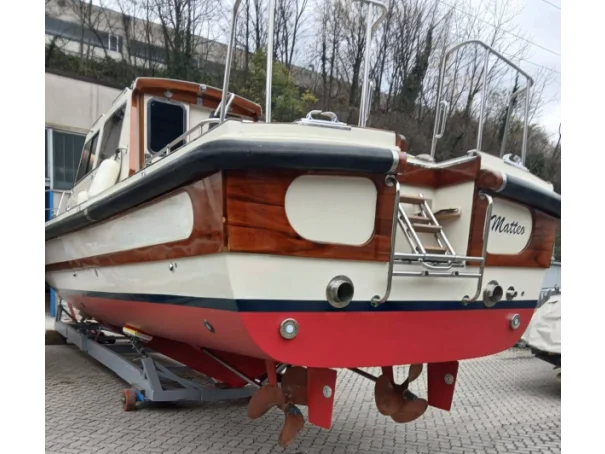

- New shaft lines
- New stainless steel diesel daily tank
Hull, Deck & Exterior
- Hull completely repainted
- New teak deck
- All exterior trim renewed in mahogany
- Custom stainless-steel handrails on the deckhouse
- Custom-built large stainless steel bow pulpit

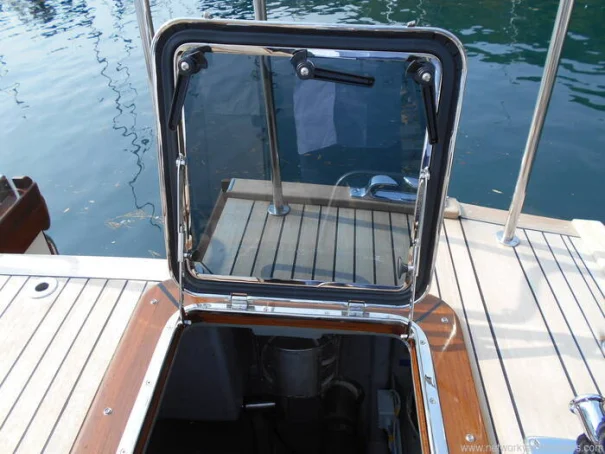

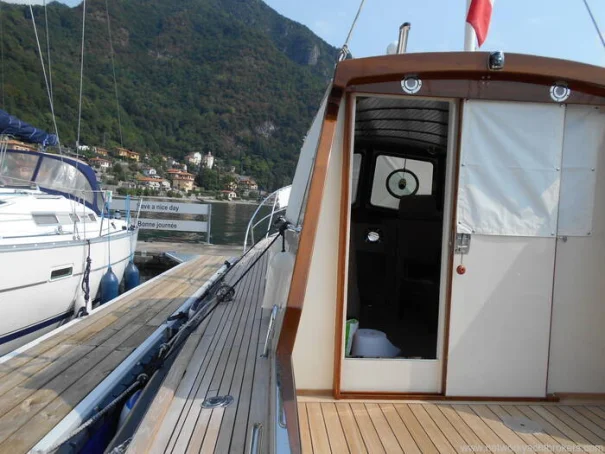

- New aft hatch providing access to the helm station
- All portholes chromed
- Forward bridge windows replaced

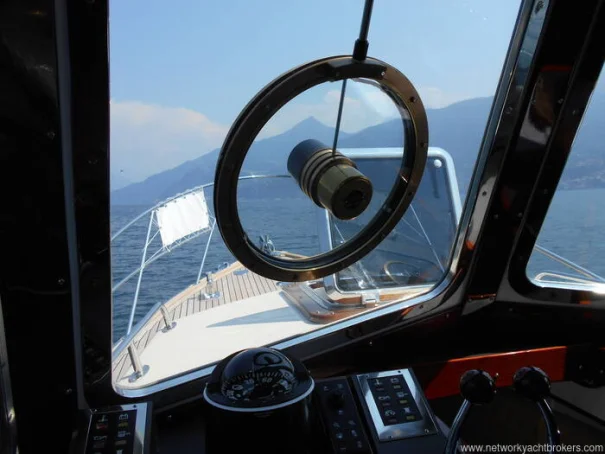

- Clear-view visors installed for safe navigation in heavy seas

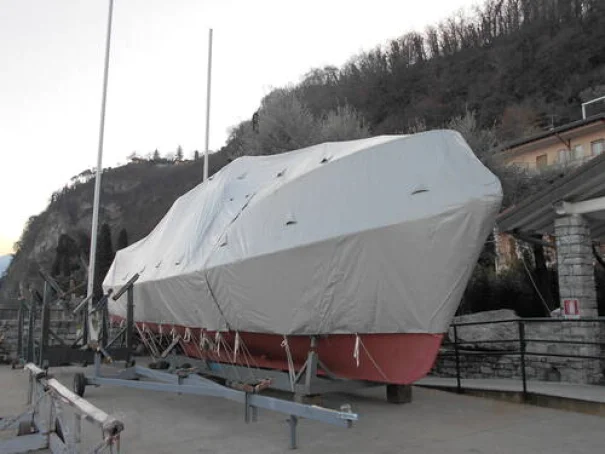

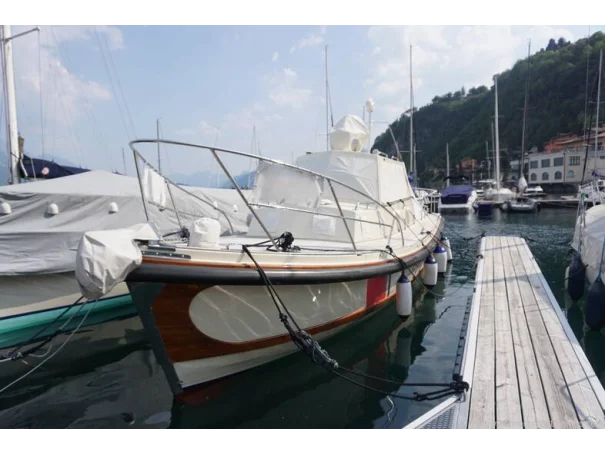

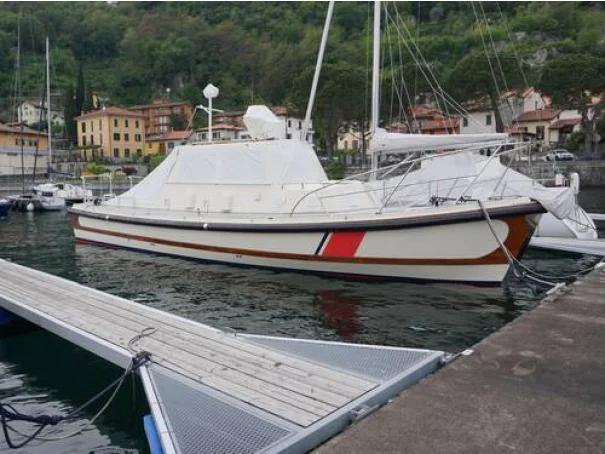

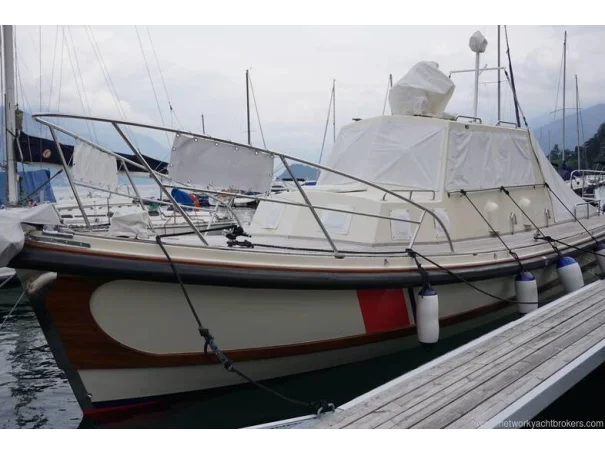

Two custom-made hull covers are included:
- One lightweight summer cover
- One heavier winter cover

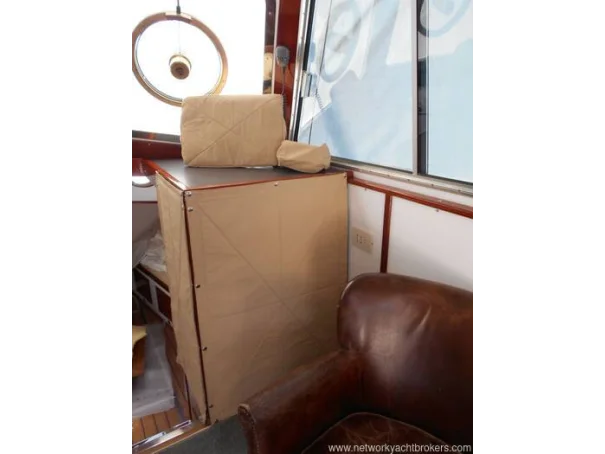

Additional protective covers are provided for:
- Instruments
- Cameras
- Portholes
- Radar, antennas, thermal camera, and searchlight
Electrical & Navigation Systems
- Entire electrical system rebuilt using stainless steel conduits

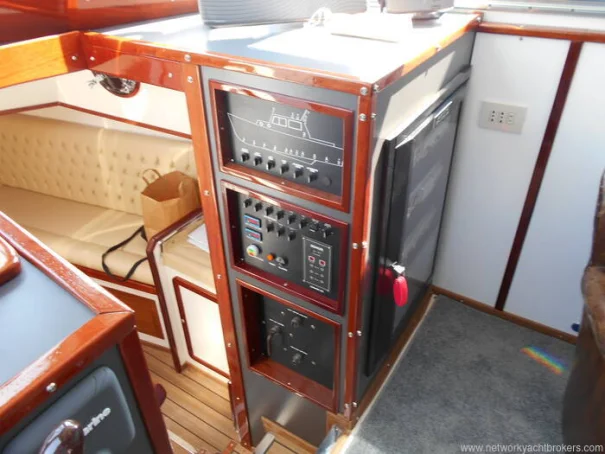

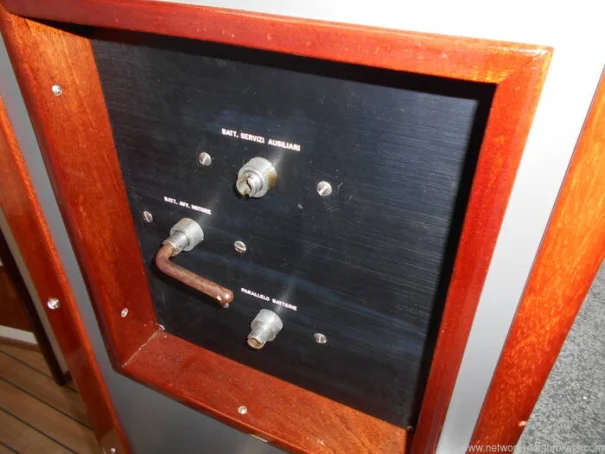

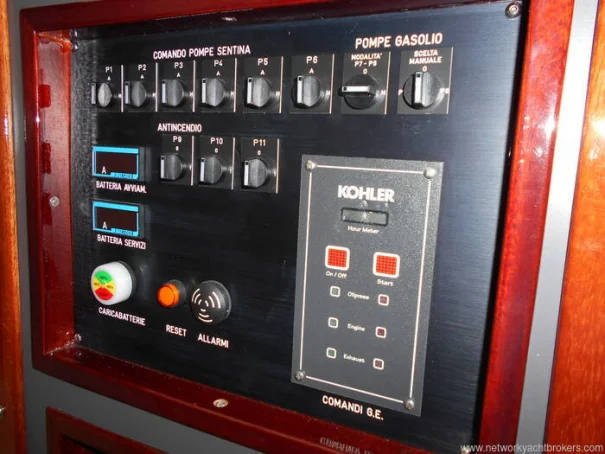

- New main switchboard
- Gala lighting installed inside the hull

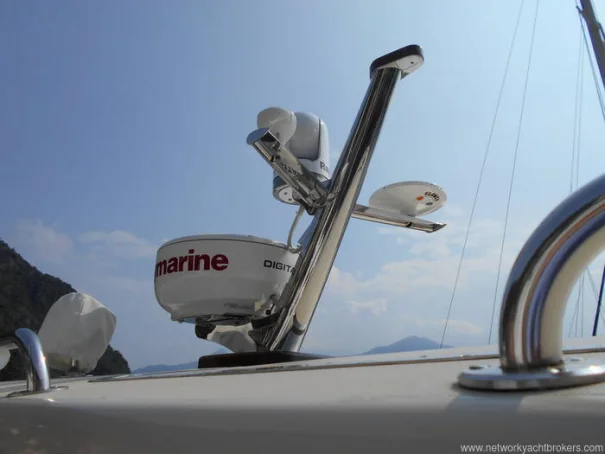

- All-new RAYMARINE navigation suite, including:
- Radar
- Chartplotter
- Full navigation instrumentation
- Thermal imaging camera for night and low-visibility operation

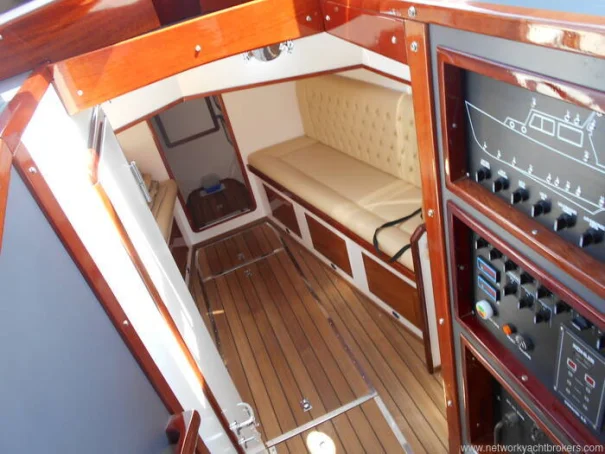

Interior & Accommodation
The bow area has been fully reimagined for comfort and style:

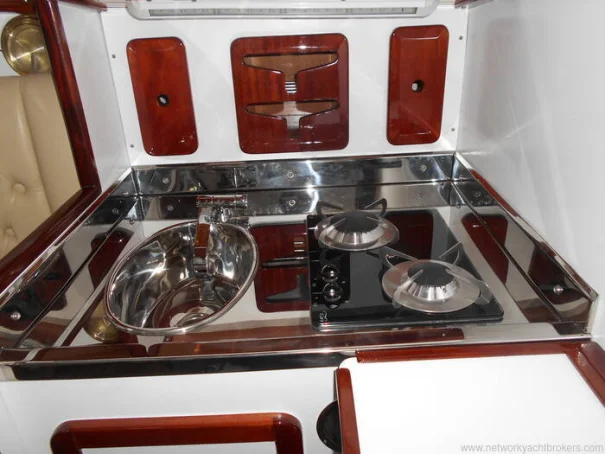

- Custom stainless-steel galley

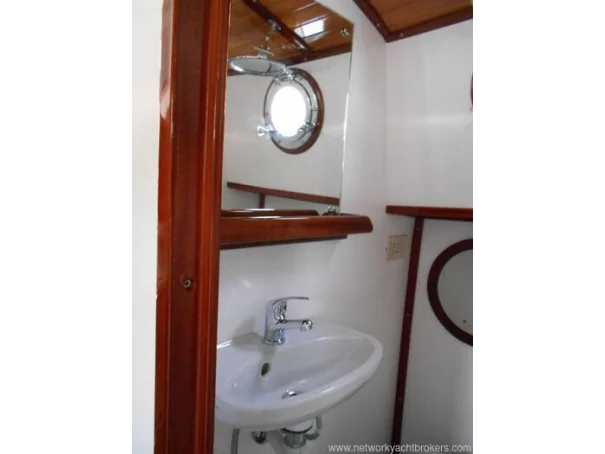

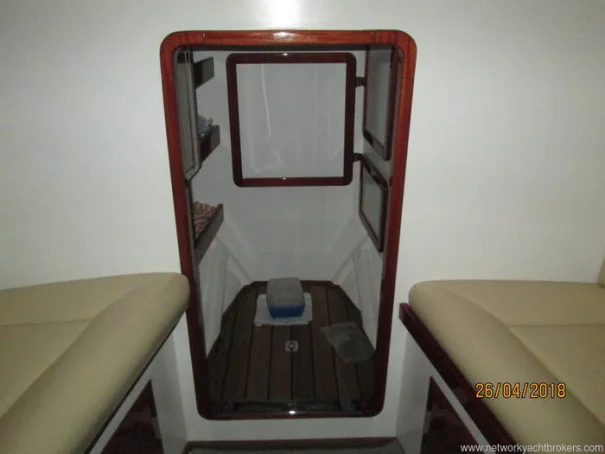

- Completely renovated bathroom

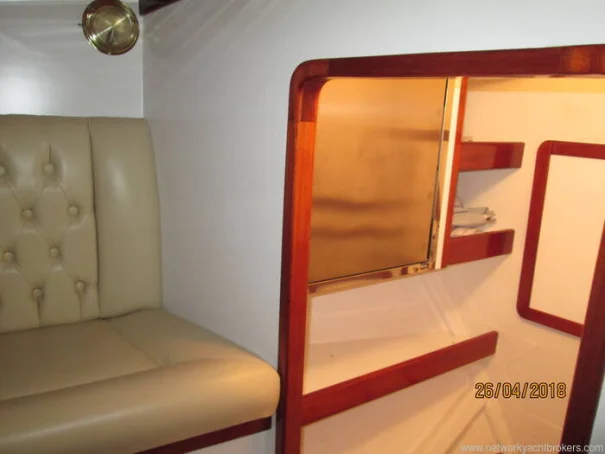

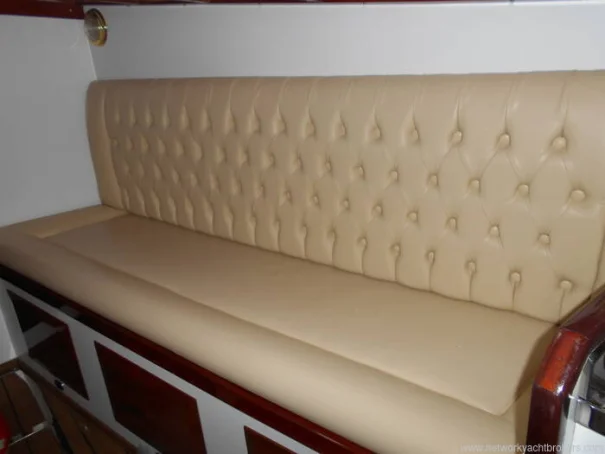

- Two elegant white leather sofa beds, inspired by classic Venetian speedboats
- New storage spaces integrated into the bow bulkhead

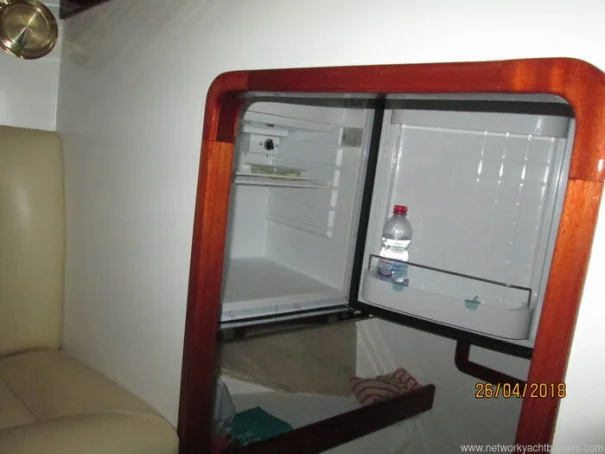

- 75-liter refrigerator

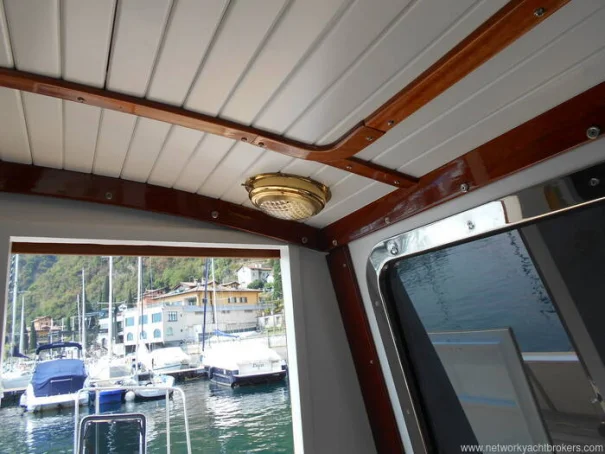

Helm & Social Areas

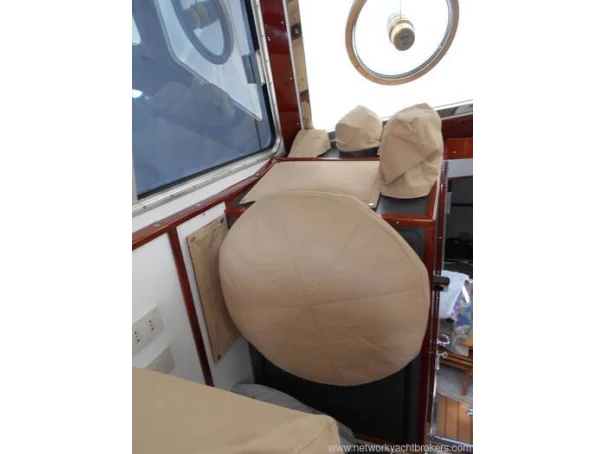

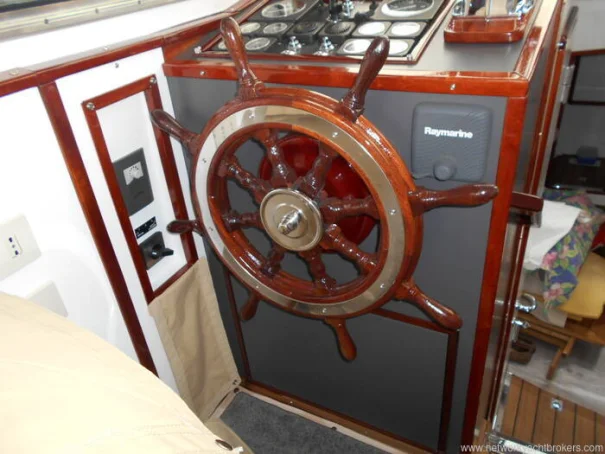

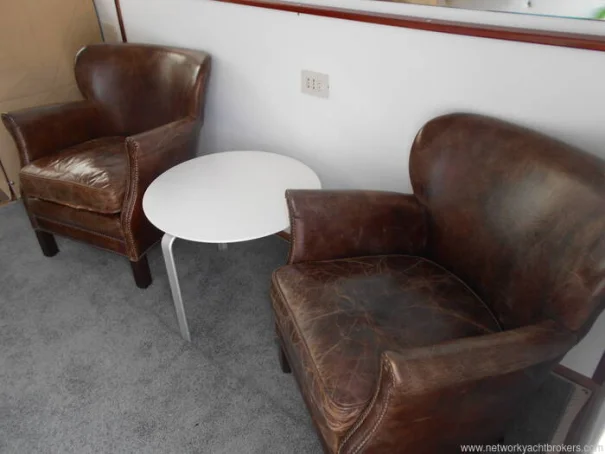

- Helm station fitted with two vintage armchairs
- DePadova designer coffee table
- Aft cockpit arranged for relaxed outdoor living with:
- Square coffee table
- Unopiù teak director’s chairs
- Ideal setup for al fresco dining
Security & Monitoring
- Full onboard security camera system:
- Two cameras on the mast (bow and stern coverage)

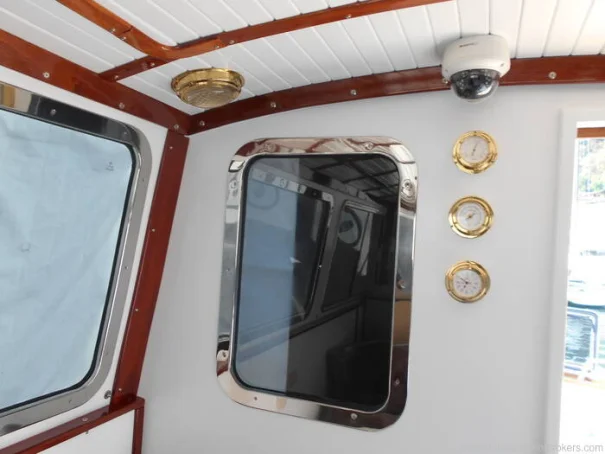

- One camera inside the helm station
A One-of-a-Kind Vessel
Every detail of Matteo reflects the owner’s exceptional passion and personal involvement. He supervised every stage of the rebuild, resulting in a unique vessel that seamlessly blends professional patrol-boat heritage, uncompromising structural integrity, and refined Italian craftsmanship.
Documentation
The vessel is offered complete with:
- Original and refit renovation drawings
- Full system schematics
- Use and maintenance manual
- Extensive photographic documentation of the refit process
Italian Yacht Sales standard terms apply and final price is subject to 5% commission payable by the buyer
Accommodation :
The bow area has been fully reimagined for comfort and style:
- Custom stainless-steel galley
- Completely renovated bathroom
- Two elegant white leather sofa beds, inspired by classic Venetian speedboats
- New storage spaces integrated into the bow bulkhead
- 75-liter refrigerator
Helm & Social Areas
- Helm station fitted with two vintage armchairs
- DePadova designer coffee table
- Aft cockpit arranged for relaxed outdoor living with:
- Square coffee table
- Unopiù teak director’s chairs
- Ideal setup for al fresco dining
Inventory :
- Reinforced GRP (fiberglass) hull with wood reinforcement
- Solid teak deck
- Cabin coamings and aft cockpit trim in mahogany
- Two comfortable white leather sofa/berths (Venetian motorboat style) in forward cabin
- Two vintage leather armchairs with De Padova designer table at the helm
- Shower room with Tecma macerator toilet
- Custom-designed galley with stainless steel sink
- QUICK BX50 stainless steel hot water boiler – 50 litres
- VITRIFRIGO refrigerator 75 litres, model C75 Lax DX
- Samsung 23” LED TV
- PROMELIT 4-channel video recorder
- Internal dome camera (S&A)
- Aft external shower – WHALE
- Flush-mounted gangway – DKC Europe
- LED underwater hull lights – Binding Union
Technical Specifications
- Engines: 2 × Aifo Fiat diesel, 235 HP each – model 8361 SRM 32
- Generator: Kohler Power Box 40
- Vertical anchor windlass: QUICK Prince DP3
- Engine controls: MORSE
- Forward helm windscreens with clear-view system – SPEICH

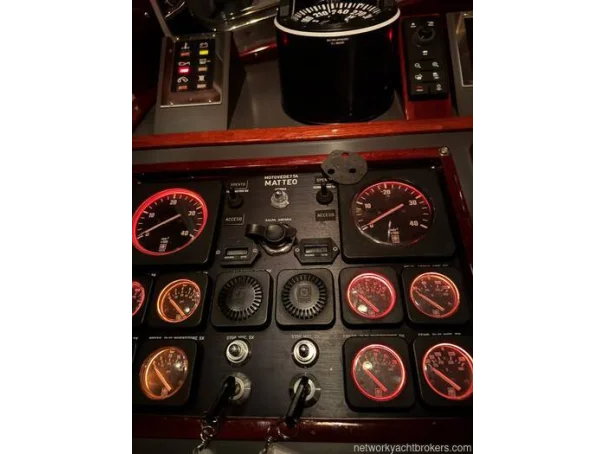

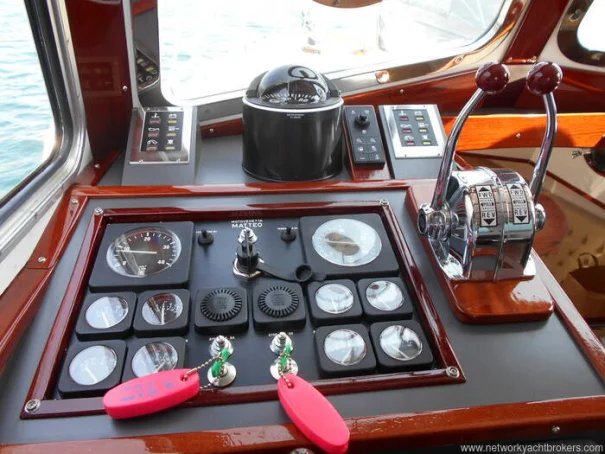

- Helm instruments: VDO
- Remote-controlled searchlight at helm – DHR
- Horn: FIAMM
- Bilge pumps: JABSCO
- Magnetic compass: RIVIERA
- VHF marine antenna: GLOMEX
- Total fuel capacity: 3 integrated diesel tanks – 1,800 litres
- Day fuel tank (steel): 175 litres
- Fresh water capacity: approx. 400 litres
Raymarine Electronics Package

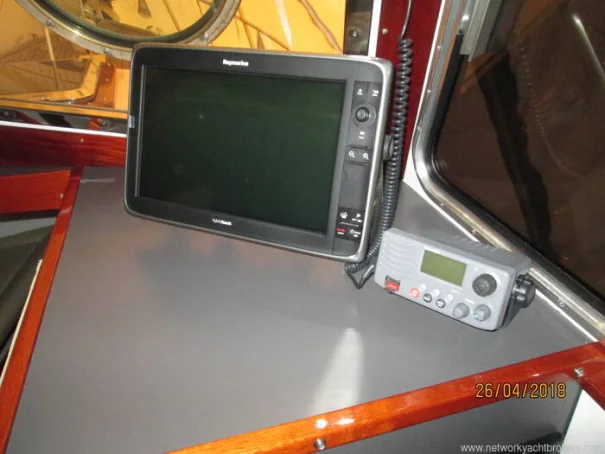

- Multifunction touchscreen display – Raymarine E165
- Remote keypad for multifunction display
- GPS chart plotter
- Autopilot SPX10 with P70R control head
- AIS receiver – AIS350
- Digital radar radome – RD418D
- Infrared thermal camera – T470SC
- Video cameras – CAM100
- Fishfinder / echo sounder – CP450C
- VHF radio – Ray55E
Two custom-made hull covers are included:
- One lightweight summer cover
- One heavier winter cover
Additional protective covers are provided for:
- Instruments
- Cameras
- Portholes
- Radar, antennas, thermal camera, and searchlight
- Reinforced GRP (fiberglass) hull with wood reinforcement
- Length overall: 12.28 m – Beam overall: 3.61 m
- Displacement: 10 tonnes
- Solid teak deck
- Cabin coamings and aft cockpit trim in mahogany
- Two comfortable white leather sofa/berths (Venetian motorboat style) in forward cabin
- Two vintage leather armchairs with De Padova designer table at the helm
- Shower room with Tecma macerator toilet
- Custom-designed galley with stainless steel sink
- QUICK BX50 stainless steel hot water boiler – 50 litres
- VITRIFRIGO refrigerator 75 litres, model C75 Lax DX
- Samsung 23” LED TV
- PROMELIT 4-channel video recorder
- Internal dome camera (S&A)
- Aft external shower – WHALE
- Flush-mounted gangway – DKC Europe
- LED underwater hull lights – Binding Union
Technical Specifications
- Engines: 2 × Aifo Fiat diesel, 235 HP each – model 8361 SRM 32
- Generator: Kohler Power Box 40
- Vertical anchor windlass: QUICK Prince DP3
- Engine controls: MORSE
- Forward helm windscreens with clear-view system – SPEICH
- Helm instruments: VDO
- Remote-controlled searchlight at helm – DHR
- Horn: FIAMM
- Bilge pumps: JABSCO
- Magnetic compass: RIVIERA
- VHF marine antenna: GLOMEX
- Total fuel capacity: 3 integrated diesel tanks – 1,800 litres
- Day fuel tank (steel): 175 litres
- Fresh water capacity: approx. 400 litres
Raymarine Electronics Package
- Multifunction touchscreen display – Raymarine E165
- Remote keypad for multifunction display
- GPS chart plotter
- Autopilot SPX10 with P70R control head
- AIS receiver – AIS350
- Digital radar radome – RD418D
- Infrared thermal camera – T470SC
- Video cameras – CAM100
- Fishfinder / echo sounder – CP450C
- VHF radio – Ray55E
Mechanical :
- Twin Aifo Fiat diesel engines, model 100 – 8361 SRM 32s, rated at 235 hp
- Fully overhauled by Bimotor (Ciriè, Turin)
- Engines repainted, with all electrical connections replaced
- Engines professionally serviced
The engine room was entirely upgraded with:
- New sound-insulating panels
- New bilge pumps
- Completely renewed diesel and freshwater piping
- New filters throughout
- New shaft lines
- New stainless steel diesel daily tank
